Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

    Buy cheap Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes from wholesalers

    Buy cheap Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes from wholesalers
    • Buy cheap Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes from wholesalers
    • Buy cheap Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes from wholesalers

    Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

    Ask Lasest Price
    Brand Name : SHINE OR OEM
    Model Number : SN-HETFE200W
    Certification : CE, RoHS, SGS, LVD
    Price : negiotation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pcs per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Sunpower ETFE Flexible Solar Panels 60 Cells 125X125 200 Watt IP67 With Diodes

    Sunpower ETFE Black Or White 60 Cells 125X125 200 Watt Flexible Solar Panel


    Product Application

    Our panel is mainly designed for charging 12V lead-acid batteries, including 12V lithium and other equipment. It utilizes the powerful Monocrystalline Solar Cell with a high efficiency conversion rate to maximize the usage of available sunlight and a MC4 connector makes sure the safety during charging. The semi-flexible Monocrystalline solar panel,being made of robust and durable material,can be curved to a maximum 15 degree arc. It's lightweight and bendable for your quick and easy installation. With inbuilt monocrystalline silicon panels which is leading in the word, our products also are upgraded with advanced ETFE lamination which is known for its extraordinary advantages.

    Main Features

    1. High Conversion Efficiency: Constructed form high-efficiency monocrystalline solar cells, up to 20.5%~22.5% efficiency, you will get greater power efficiency even though the panel is smaller than a traditional model.

    2. Bendable Panel: The plastic back sheet can be curved to a maximum 15 degree arc and can mounted on an RV, boat, cabin or other surface.


    3. Lightweight: Lighter and thinner, it only 0.7 in thick and weighs a mere 4.2lb(1.9kg).


    4. Easy installation: Unique frameless design features and 6 metal reinforced mounting holes for fixing screws and for easy installation.


    5. Convenient: The flexibility of this panel makes it ideal for storage in tight spaces or crowded areas.


    100 watt flexible solar panel etfe:

    Item200W ETFE flexible solar panel
    Solar panel size :1320*800*3mm
    Product net weight :3.3KG
    Efficiency:22%
    Maximum power(Pm):200W
    Voltage at max power(Vmp):34.8(V)
    Current at max power(Imp):5.75(A)
    Short circuit current(Isc):6.26(A)
    Open circuit voltage(Voc):41.76(V)
    Number of cells and connections :60Cell
    Connector :MC4
    Junction box :IP67
    Operating Temperature :- 40-+85

    Any size and shape flexible solar panel can be customized according to your requirement.


    Other model and wattage:

    MODELPM/wVOC/vISC/AVMP/VIMP/AC-EFFN/W(kg)DIMENSION
    (mm)
    SN-HETFE18W18.0

    23.76

    0.9919.800.9122.00%0.30434*277*3
    SN-HETFE25W25.021.61.5118.001.3922.00%0.45560*277*3
    SN-HETFE30W30.021.61.8218.001.6722.00%0.60535*378*3
    SN-HETFE50W50.021.63.0318.002.7822.00%0.85545*535*3
    SN-HETFE60W60.023.763.319.903.0322.00%0.95800*405*3
    SN-HETFE95W95.019.446.3916.205.8622.00%1.50920*535*3
    SN-HETFE110W110.022.26.4818.505.9522.00%1.751050*540*3
    SN-HETFE120W120.025.066.2620.885.7522.00%

    2.00

    1175*540*3
    SN-HETFE135W135.027.846.3423.205.8222.00%2.201305*540*3
    SN-HETFE150W150.030.626.4125.525.8822.00%2.501450*540*3
    SN-HETFE170W170.034.806.3929.005.8622.00%2.851320*670*3
    SN-HETFE200W200.041.766.2634.805.7522.00%3.301300*800*3
    SN-HETFE220W220.045.946.2638.285.7522.00%3.901435*800*3
    SN-HETFE285W285.058.466.3848.725.8522.00%5.001810*800*3

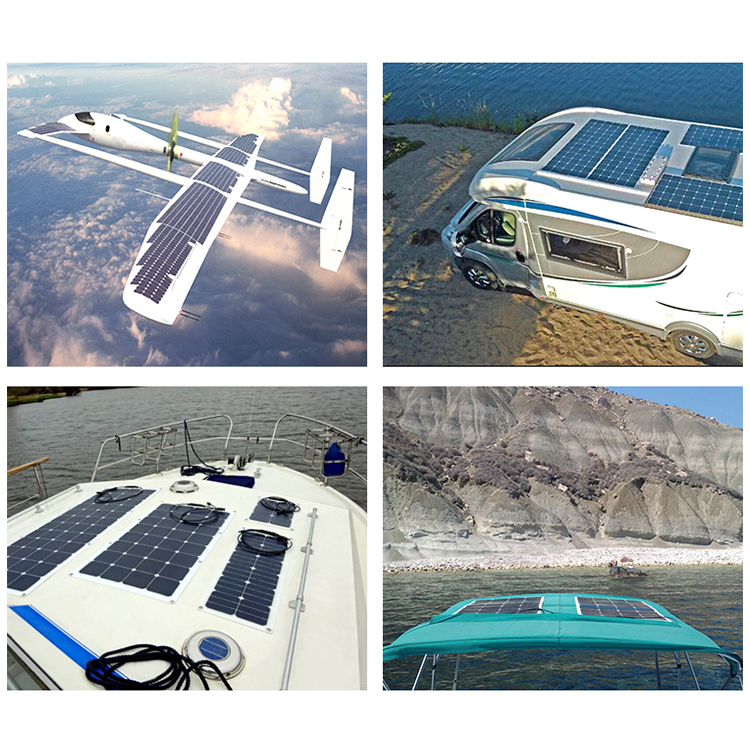

    Pictures:



    Packing:

    12pcs/Carton
