Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass

    Buy cheap Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass from wholesalers

    Buy cheap Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass from wholesalers
    • Buy cheap Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass from wholesalers
    • Buy cheap Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass from wholesalers
    • Buy cheap Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass from wholesalers

    Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass

    Ask Lasest Price
    Brand Name : SHINE OR OEM
    Model Number : SN-M20
    Certification : CE, LVD, TUV, IEC, ROSH, SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass

    20Watt 12V Solar Panel 12V Solar Panel for home system Mono Solar Panel

    Our advantage

    1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

    2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

    3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

    4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    5, 25 years warranty

    6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.


    Product Description
    CharacteristicsSN-M005SN-M010SN-M020SN-M030SN-M040
    Maximum Power(Pmax)5Wp10Wp20Wp30Wp40Wp
    Optimum Operating Voltage/Vmp18.0V18.0V18.0V18.0V18.0V
    Optimum Operating Current/Imp0.27A0.56A1.11A1.67A2.22A
    Open Circuit Voltage /Voc21.6V21.6V21.6V21.6V21.6V
    Short Circuit Current /Isc0.3A0.66A1.21A1.87A2.42A
    Module Efficiency10.32%11.37%12.33%13.70%14.80%
    Weight1Kg1.7Kg2.3Kg2.8Kg3.2Kg
    Numbers of cells36(2*18)36(2*18)36(2*18)36(2*18)36(3*12)
    Cell dimension(mm)78*10.4156*10.4156*22.3156*31.2156*39
    Dimensions(mm)255*190*18345*255*18470*345*25635*345*25530*510*25
    Standard test conditionIrradiance 1000W/m²,Module temperature 25℃, AM=1.5
    Mechanical Characteristics
    Power Tolerance±3 %
    Maximum Series Fuse Rating15A
    Maximum System Voltage1000V DC
    Operating Module Temperature-40°C to +80°C
    Frame MaterialClear Anodized aluminum Frame
    Thickness of glass3.2mm tempered glass
    FrameAnodized aluminum alloy
    Laminating materialEVA
    Backsheet materialTPT
    Junction boxIp65

    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT)45±2℃
    Temperature Coefficient of Pmax-0.45%/2℃
    Temperature Coefficient of Voc-0.34%/2℃
    Temperature Coefficient of Isc-0.050%/2℃

    Pictures

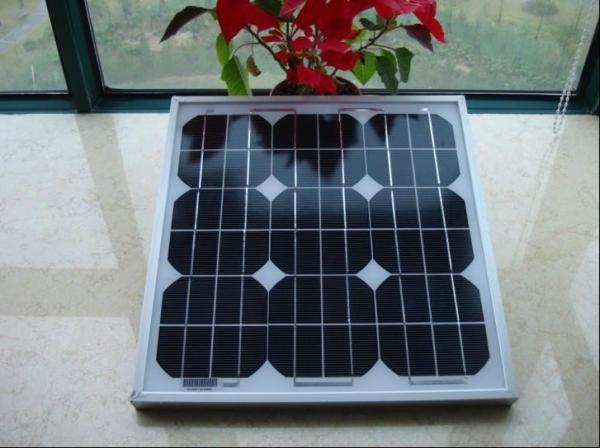

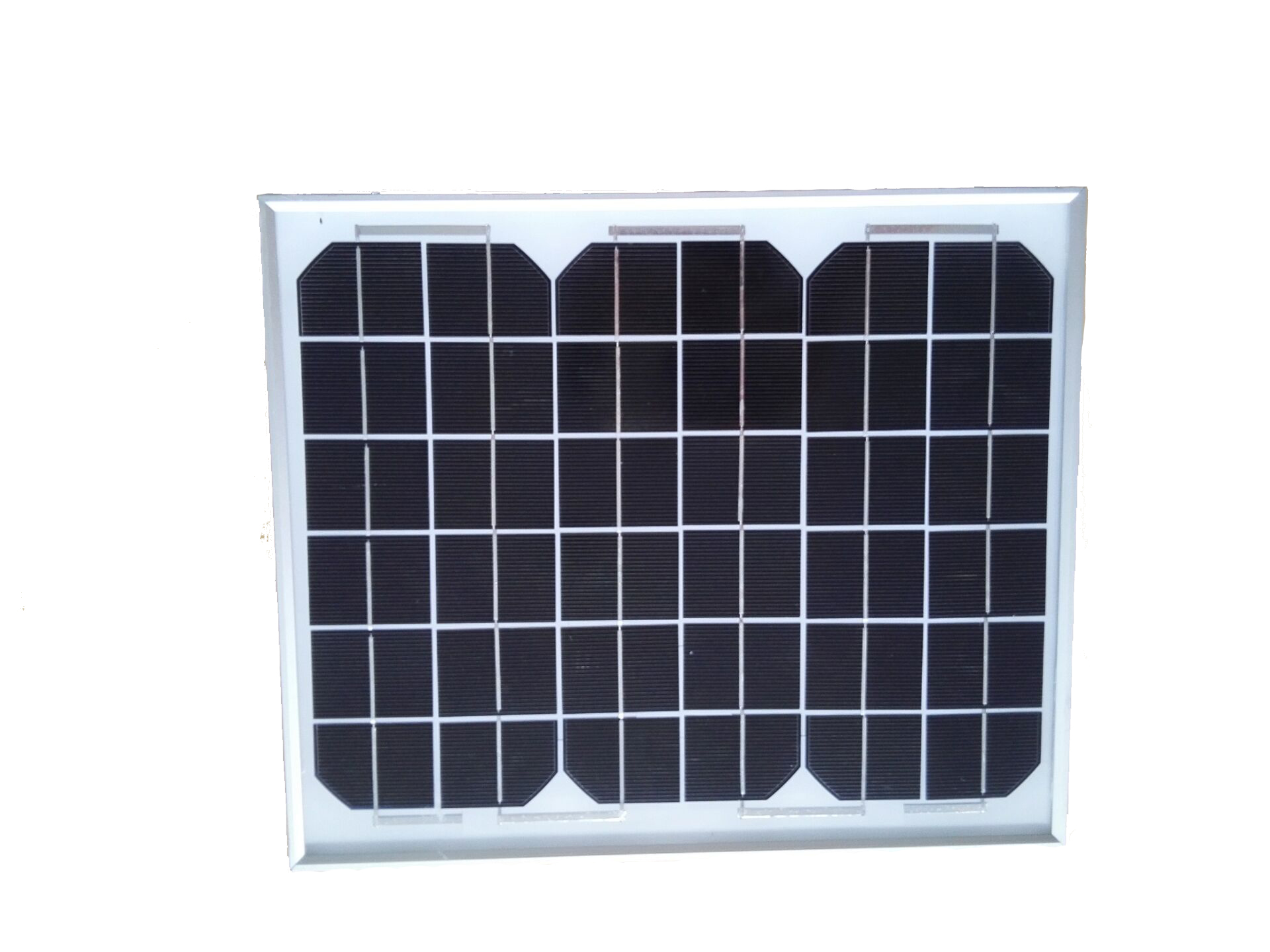

    Quality Anti - Reflective Solar Panels 12V 20W High Transmission Tempered Glass Front Glass for sale
