    Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems

    Ask Lasest Price
    Brand Name : SHINE, OEM
    Model Number : SN-EP3W
    Certification : CE, RoHS, IEC
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems

    Factory sales epoxy resin 3w 5v 6v 8v 9v mini solar panel for toys


    Epoxy solar panel structure

    It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,

    1. Epoxy resin AB glue

    2. Solar cells

    3. PCB Board

    Products details
    1. Each solar cell is in new condition and not susceptible to micro-crack

    2. A proprietary anti-reflective coating provides superior color uniformity

    3. Laser-cut for exacting measurements and precision

    4. Can be incorporated into several different devices

    5. Simple to install or add to your existing product.

    6. Small space required for installation.

    7. Ready to use, they require no frame or special modifications.

    8. For connection, just solder or crimp to the copper tape.

    9. Light weighted, very strong and weather resistant.

    10. Ideal for OEM and hobby applications.

    Products Features:

    Model No.:SN-EP3W
    Cell Type:mono-crystalline silicon
    Cell Efficiency:about 18%
    Power Tolerance:+/-3%
    Max Output Power (Wmp):3W
    Optimum Operating Voltage (Vmp):5V
    Optimum Operating Current (Imp):600mah
    Open Circuit Voltage (Voc):6V
    Short Circuit Current (Isc):720mah
    Size:Custom size
    Material:PET+EVA+Mono Cell+EVA+PCB
    Connector2.1mm male DC barrel connector
    Testing Conditions (STC):

    Irradiance1000W/m2, Temperature 25°C, AM 1.5

    Note: The shape,size and voltage of solar panels can be customized by customers' requirements.

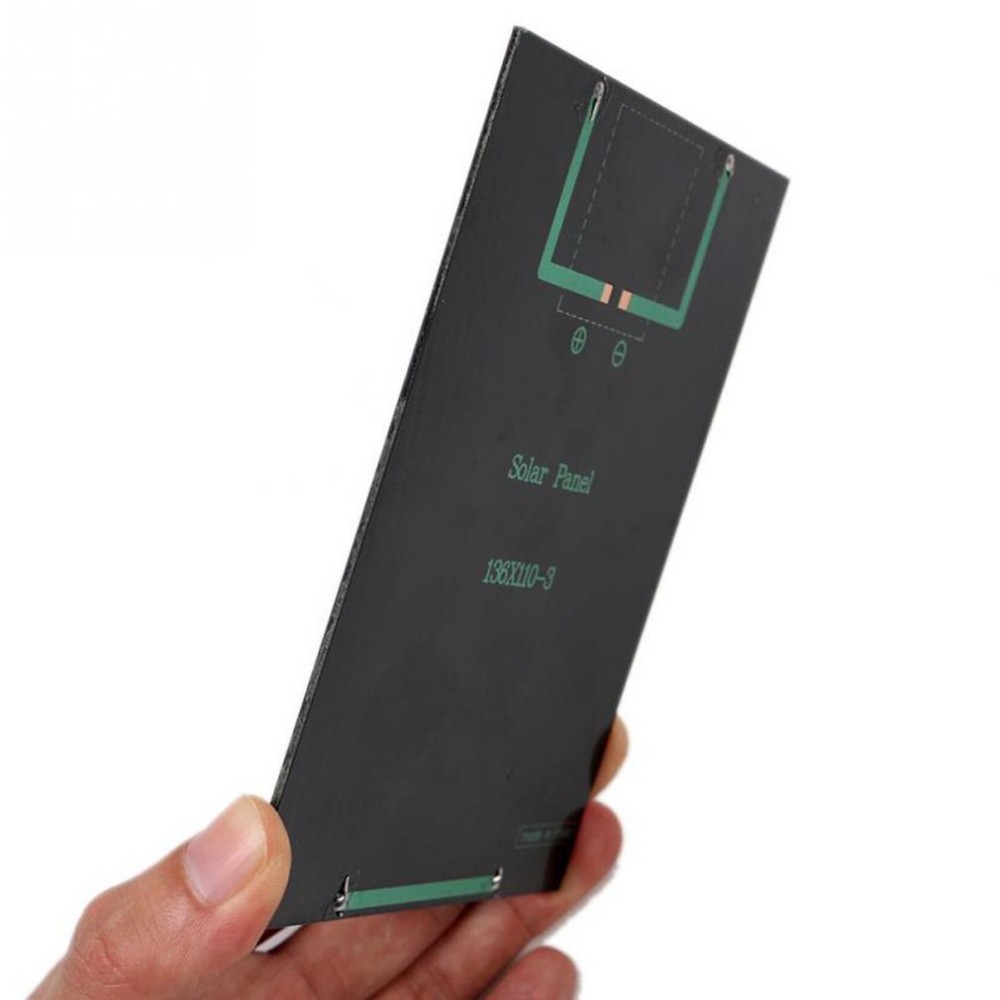

    Pictures


    Quality Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems for sale
