    Custom Made 6V 1.5W Mini Solar Panels With Poly Crystalline Solar Cell

    Ask Lasest Price
    Brand Name : SHINE, OEM
    Model Number : SN-P5W
    Certification : CE, RoHS, IEC
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Custom Made 6V 1.5W Mini Solar Panels With Poly Crystalline Solar Cell

    Custom made 6V 1.5W epoxy resin mini solar panel with poly crystalline solar cell

    Features

    1. High efficiency monocrystalline or polycrystalline solar cells.
    2. PET laminated.
    3. Suitable for both lithium battery and Ni-MH battery connectivity
    4. Ideal for mobile phone, mobile phone chargers, small power consumption electronics and electronic gifts.

    5. 12V 1.5W Solar Panel
    6. High conversion rate, high efficiency output
    7. Excellent weak light effect
    8. Suitable for charging cellphone and small DC batteries
    9. Build your DIY powered models, solar display , solar light and solar toys, etc

    Products Features:

    Model No.:SN-EP2W
    Cell Type:Poly -crystalline silicon
    Cell Efficiency:about 18%
    Power Tolerance:+/-3%
    Max Output Power (Wmp):2W
    Optimum Operating Voltage (Vmp):18V
    Optimum Operating Current (Imp):111mah
    Open Circuit Voltage (Voc):21.6V
    Short Circuit Current (Isc):122mah
    Size:Custom size
    Material:PET+EVA+Mono Cell+EVA+PCB
    Connector2.1mm male DC barrel connector
    Testing Conditions (STC):

    Irradiance1000W/m2, Temperature 25°C, AM 1.5

    Note: The shape,size and voltage of solar panels can be customized by customers' requirements.

    Epoxy solar panel is a traditional type small solar panel called which is sticked together


    by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers.(epoxy resin AB Glue, solar cells, pcb board)


    PET solar panel belongs to solar panel series, just different encapsulation.In order to have required output of voltage and current, we need to cut a whole solar cell into small pieces.


    1.High efficiency monocrystalline or polycrystalline solar cells.


    2.Epoxy or PET or Glass laminate.


    3.Suitable for both lithium battery and Ni-MH battery connectivity

    4.Ideal for mobile phone,mobile phone chargers, small power consumption electronics and electronic gifts.

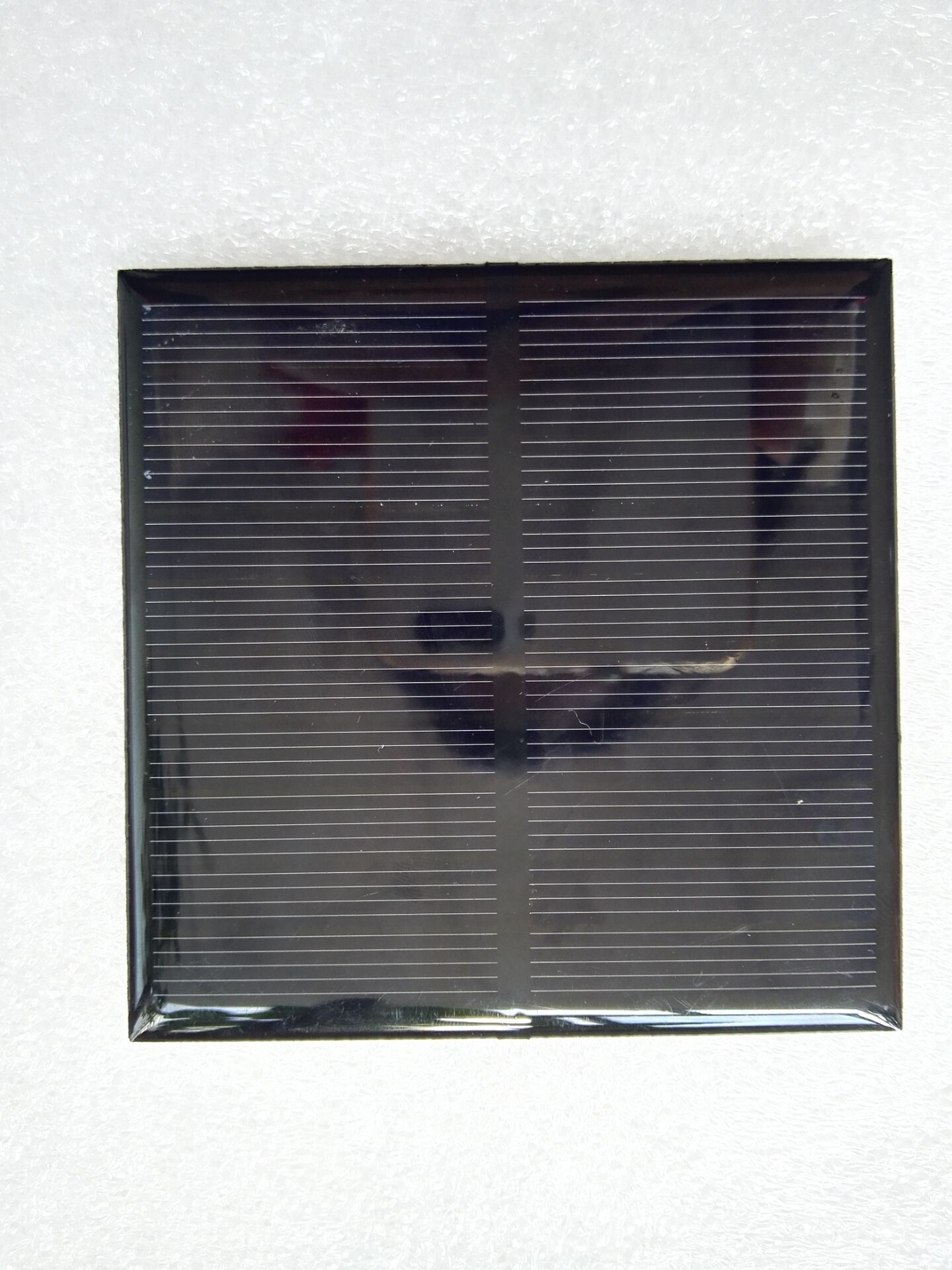

    Pictures

    Quality Custom Made 6V 1.5W Mini Solar Panels With Poly Crystalline Solar Cell for sale
