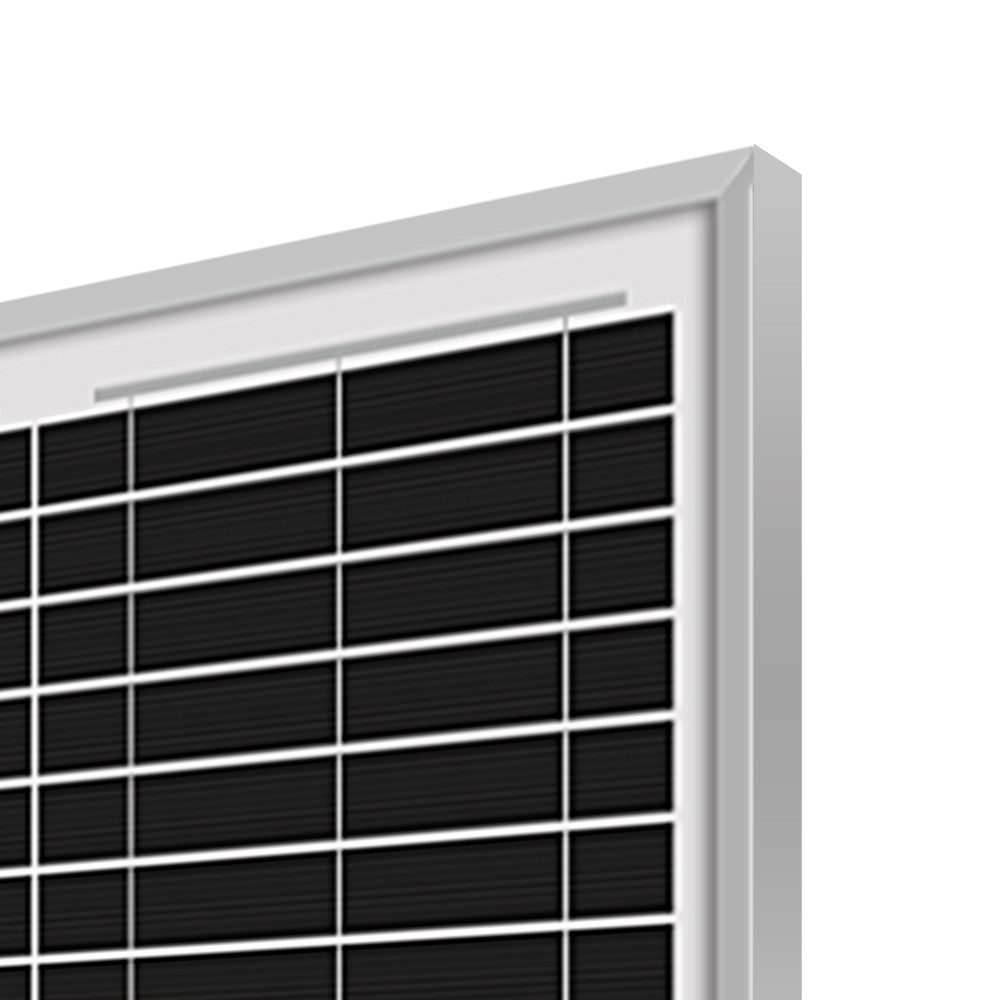

Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery

    Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers

    Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers
    • Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers
    • Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers
    • Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers
    • Buy cheap Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery from wholesalers

    Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery

    Ask Lasest Price
    Brand Name : SHINE or OEM
    Model Number : SN-P30W
    Certification : CE,RoHS, TUV, IEC, SGS, ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15000 pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery

    30w Solar Panel Solar Cell Charged Solar Lighting For Bus Stop Shelters Battery


    Features of solar panel

    Polycrystalline or Monocrystalline silicon is a material consisting of thin wafers that are cut from a silicon crystal which has grown in several directions. This advanced texturing process provides polycrystalline or moncrystalline solar panels with a higher power output than amorphous panels of the same dimensions, and makes them more cost and space-effective. These individual wafers are assembled into panels that are covered by durable, weatherproof tempered glass. Thanks to their efficiency and durability, these solar panels require virtually no maintenance once installed.


    Solar panel is super energy saving and makes people life happy

    Solar panel helps us to take full advantage of solar energy which is clean, inexhautible and pollution-free, and it converts sunlight into electric. In this way, we can help people in remote areas without mains supply and lack of electricity, and light up nights and bring people hope there.


    What's the advantages of solar energy?
    Solar energy is a clean and renewable resource.
    No pollution, no noise and no effect on ecological balance during use.
    High efficiency of energy conversion and long time sustainable use.
    Low maintenance and repair costs.
    Wide range of applications.(home and outdoor, industrial and commercial)
    Low use of environmental requirements.(-40ºC~+85ºC, just need sunshine)
    Easy to install and use.
    Packing:

    40pcs in Cartoon, with pallets or without pallets.


    Quality and Safety
    1. Rigorous quality control meets the highest international standards.
    2. High-transmissivity low-iron tempered glass, strong aluminium frame.
    3. Using UV-resistant silicon.
    4. IS09001/14001/CE/TUV/UL

    5-80Watt Polycrystalline Solar Panel
    CharacteristicsSN-P030SN-P040SN-P050SN-P060SN-P080
    Maximum Power(Pmax)30Wp40Wp50Wp60Wp80Wp
    Optimum Operating Voltage/Vmp18.0V18.0V18.0V18.0V18.0V
    Optimum Operating Current/Imp1.67A2.22A2.78A3.33A4.44A
    Open Circuit Voltage /Voc21.6V21.6V21.6V21.6V21.6V
    Short Circuit Current /Isc1.87A2.42A2.98A3.52A4.64A
    Module Efficiency13.70%14.80%14.42%14.21%15.61%
    Weight2.8Kg3.2Kg4.0Kg5.2Kg6Kg
    Numbers of cells36(2*18)36(3*12)36(3*12)36(4*9)36(4*9)
    Cell dimension(mm)156*31.2156*39156*52156*62.4156*78
    Dimensions(mm)635*345*25530*510*25680*510*30670*630*30765*670*30
    Standard test condition

    Mechanical Characteristics
    Power Tolerance±3 %
    Maximum Series Fuse Rating15A
    Maximum System Voltage1000V DC
    Operating Module Temperature-40°C to +80°C
    Frame MaterialClear Anodized aluminum Frame
    Thickness of glass3.2mm tempered glass
    FrameAnodized aluminum alloy
    Laminating materialEVA
    Backsheet materialTPT
    Junction boxIp65

    Professional Multicrystalline Solar Panels 30W For Bus Stop Shelters BatteryProfessional Multicrystalline Solar Panels 30W For Bus Stop Shelters Battery
