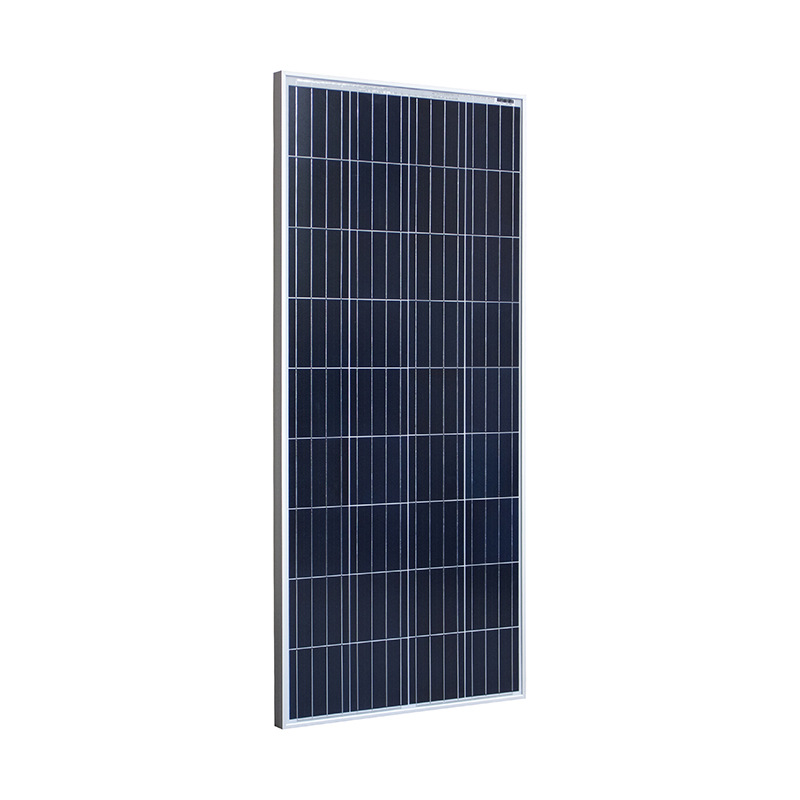

A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System

Shenzhen Shine Solar Co., Ltd.
Contact Now
    Buy cheap A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System from wholesalers

    Buy cheap A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System from wholesalers
    • Buy cheap A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System from wholesalers
    • Buy cheap A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System from wholesalers

    A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System

    Ask Lasest Price
    Brand Name : SHINE or OEM
    Model Number : SN-P100W
    Certification : CE,RoHS, TUV, IEC, SGS, ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15000 pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System

    A Grade Photovoltaic cell made 300W Polycrystalline solar panel for your home best solar power system


    Our Services

    1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

    2, Our sales team 24 hours online, can reply your mail in time.

    3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

    5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.

    Product Description

    100-160Watt Polycrystalline Solar Panel
    CharacteristicsSN-P100SN-P130SN-P140SN-P150SN-P160
    Maximum Power(Pmax)100Wp130Wp140Wp150Wp160Wp
    Optimum Operating Voltage/Vmp18.0V18.0V18.0V18.0V18.0V
    Optimum Operating Current/Imp5.56A7.22A7.76A8.33A8.89A
    Open Circuit Voltage /Voc21.6V21.6V21.6V21.6V21.6V
    Short Circuit Current /Isc5.76A7.42A7.96A8.53A9.78A
    Module Efficiency14.60%13.10%14.10%15.10%16.13%
    Weight7.2Kg10.2Kg10.2Kg10.2Kg10.2Kg
    Numbers of cells36(4*9)36(4*9)36(4*9)36(4*9)36(4*9)
    Cell dimension(mm)156*104156*156156*156156*156156*156
    Dimensions(mm)1020*670*301480*670*35
    Standard test conditionIrradiance 1000W/m²,Module temperature 25℃, AM=1.5

    Mechanical Characteristics
    Power Tolerance±3 %
    Maximum Series Fuse Rating15A
    Maximum System Voltage1000V DC
    Operating Module Temperature-40°C to +80°C
    Frame MaterialClear Anodized aluminum Frame
    Thickness of glass3.2mm tempered glass
    FrameAnodized aluminum alloy
    Laminating materialEVA
    Backsheet materialTPT
    Junction boxIp65
    Mechanical Characteristics
    Power Tolerance±3 %
    Maximum Series Fuse Rating15A
    Maximum System Voltage1000V DC
    Operating Module Temperature-40°C to +80°C
    Frame MaterialClear Anodized aluminum Frame
    Thickness of glass3.2mm tempered glass
    FrameAnodized aluminum alloy
    Laminating materialEVA
    Backsheet materialTPT
    Junction boxIp65

    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT)45±2℃
    Temperature Coefficient of Pmax-0.45%/2℃
    Temperature Coefficient of Voc-0.34%/2℃
    Temperature Coefficient of Isc-0.050%/2℃
