High Performance Monocrystalline Solar Panel 330W 36V For Power Station

    Buy cheap High Performance Monocrystalline Solar Panel 330W 36V For Power Station from wholesalers

    Buy cheap High Performance Monocrystalline Solar Panel 330W 36V For Power Station from wholesalers
    • Buy cheap High Performance Monocrystalline Solar Panel 330W 36V For Power Station from wholesalers

    High Performance Monocrystalline Solar Panel 330W 36V For Power Station

    Ask Lasest Price
    Brand Name : SHINE OR OEM
    Model Number : SN-M330
    Certification : CE, LVD, TUV, IEC, ROSH, SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

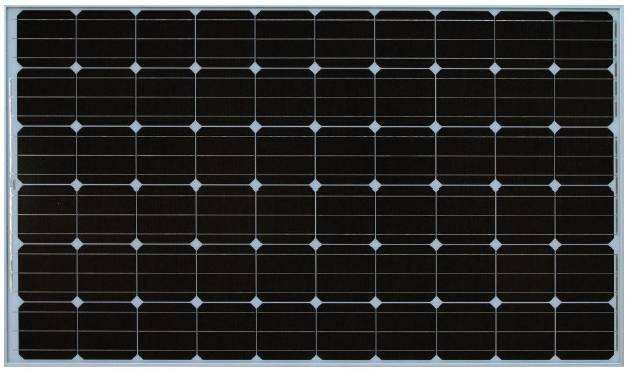

    High Performance Monocrystalline Solar Panel 330W 36V For Power Station

    High performance 300w 36V Monocrystalline Solar Panel for power station

    GLASS

    > Antireflective glass
    > Translucency of normal luminance is increased by 2%
    > Module efficiency is increased by 2%
    > Self-cleaning function
    > Service life is as long as 25 years(30 years optional)

    FRAME

    > Conventional frame
    > Silver or black frames are optional
    > Boost bearing capability and prolong service life
    > Serra-clip design tensile strength
    > Seal-lip designglue injection

    SOLAR CELL

    > High Efficiency PV Cells
    > Appearance Consistency
    > Color sorting ensure consistent appearance on each module
    > Anti-PID

    JUNCTION BOX

    > Conventional standalone edition and engineering custom edition
    > Quality diode ensures module running safety
    > IP65 Protection level
    > Heat dissipation
    > Long service life

    power and shape
    ▶ 24 hours online
    ▶ Delivery on time, 15-20 days lead timefor glass solar panels,
    ▶ Can provide specialized guidance to customers
    ▶As long as send an order to our company ,you will always be our VIP customer

    Specification of this monocrystalline solar panel

    100Watt Monocrystalline Solar Panel
    Mechanical Characteristics
    Characteristics
    SN-M330
    Power Tolerance
    ±3 %
    Maximum Power(Pmax)
    330Wp
    Maximum Series Fuse Rating
    15A
    Optimum Operating Voltage/Vmp
    36.0V
    Maximum System Voltage
    1000V DC
    Optimum Operating Current/Imp
    9.16A
    Operating Module Temperature
    -40°C to +80°C
    Open Circuit Voltage /Voc
    43.2V
    Frame Material
    Clear Anodized aluminum Frame
    Short Circuit Current /Isc
    10.07A
    Thickness of glass
    3.2mm tempered glass
    Module Efficiency
    17.09%
    Frame
    Anodized aluminum alloy
    Weight
    22Kg
    Laminating material
    EVA
    Numbers of cells
    72(6*12)
    Backsheet material
    TPT
    Cell dimension
    156*156mm
    Junction box
    Ip65
    Dimensions(mm)
    1950*990*40mm
    Standard test condition
    Irradiance 1000W/m²,Module temperature 25℃, AM=1.5
