    Long Life Span SunPower Folding Solar Panels 100W 12V High Efficiency

    Ask Lasest Price
    Brand Name : SHINE OR OEM
    Model Number : SN-M100
    Certification : CE, LVD, TUV, IEC, ROSH, SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Long Life Span SunPower Folding Solar Panels 100W 12V High Efficiency

    100watt 12V high efficience flexible solar panel Mono Cell Solar Panel


    Features of Solar Panel

    Polycrystalline or Monocrystalline silicon is a material consisting of thin wafers that are cut from a silicon crystal which has grown in several directions. This advanced texturing process provides polycrystalline or moncrystalline solar panels with a higher power output than amorphous panels of the same dimensions, and makes them more cost and space-effective. These individual wafers are assembled into panels that are covered by durable, weatherproof tempered glass. Thanks to their efficiency and durability, these solar panels require virtually no maintenance once installed.


    Solar panel is super energy saving and makes people life happy

    Solar panel helps us to take full advantage of solar energy which is clean, inexhautible and pollution-free, and it converts sunlight into electric. In this way, we can help people in remote areas without mains supply and lack of electricity, and light up nights and bring people hope there.

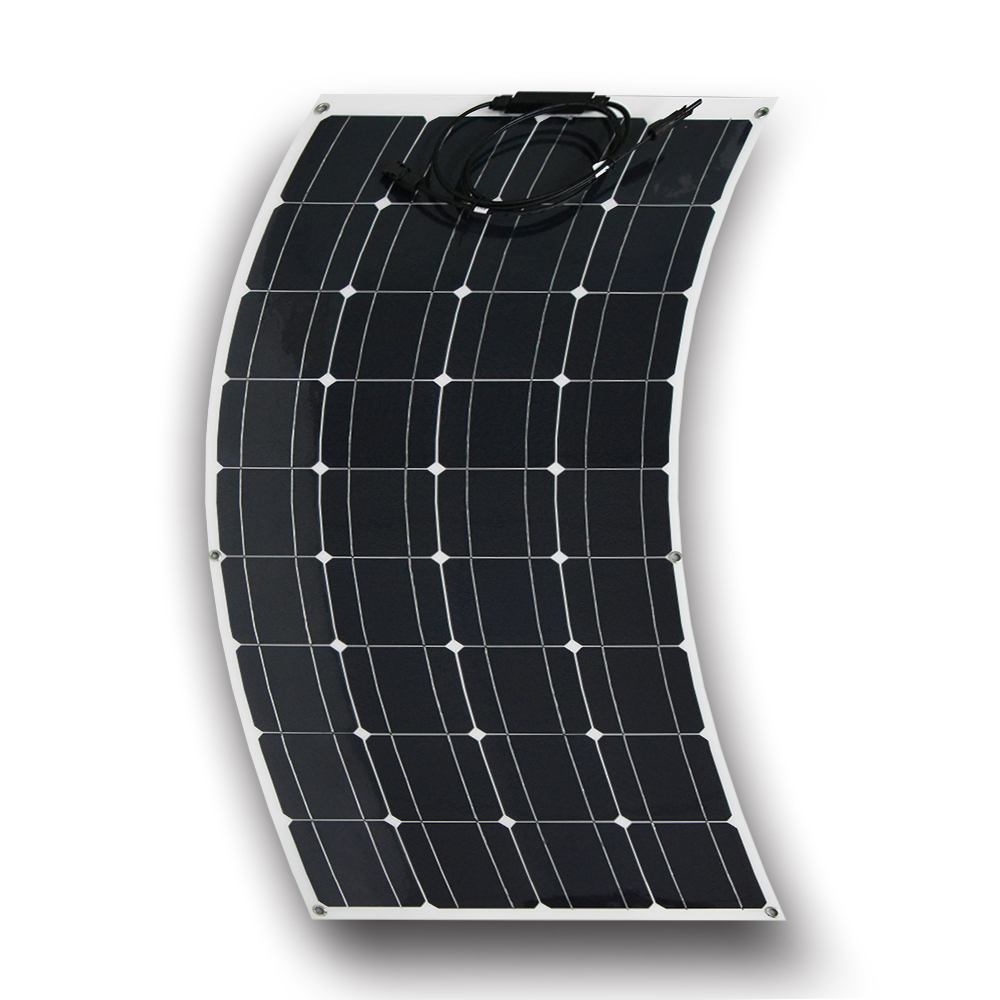

    Mono flexible solar panel feature:

    1. High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output

    2. The thickness only 2.5mm, easy joint to your yacht, boat or RV roof, or fixed on your caravans, motorhomes, bicycle and other vehicles for outdoor using

    3. Bending angle up to 30 degrees. Durable with aluminum backsheet, no glass


    Product Description

    BrandOEM/SHINE
    ModelnumberSN-MH100W
    characteristics
    Size1050*540*3mm
    Cell dimension125*125mm
    No. Of cells32(4*8) pieces
    Electrical Performance
    Maximum power voltage17.80 V
    Maximum power current5.6 A
    Open circuit voltage21.60 V
    Short circuit current5.6A
    Peak power50W
    Power tolerance0~+3%
    Maximum system Voltage (V)600 V
    Working Conditions & Parameters
    NOCT cell46±2 °C
    Temperature coefficient Isc (%)+0.04±0.015%/ °C
    Temperature coefficient Voc (%)-0.3±0.02%/ °C
    Temperature coefficient Pm (%)-0.45±0.05%/ °C
    Temperature coefficient Im (%)+0.04%/ °C
    Temperature coefficient Vm (%)-0.32±0.02%/ °C
    Operating temperatures-40°C ~+90 °C
    Surface pressure60m/s (200kg /m2)

    Pictures:



    Packing:

    2pcs per box,40pcs/Cartoon with pallets or without pallets./

    Quality and Safety

    1. Rigorous quality control meets the highest international standards.

    2. High-transmissivity low-iron tempered glass, strong aluminium frame.

    3. Using UV-resistant silicon.

    4. IS09001/14001/CE/TUV/
