    Corrosion Resistant Monocrystalline Solar Panel Kit 50 Watt 545 x 535 x 3 mm

    Ask Lasest Price
    Brand Name : SHINE OR OEM
    Model Number : SN-M320
    Certification : CE, LVD, TUV, IEC, ROSH, SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Corrosion Resistant Monocrystalline Solar Panel Kit 50 Watt 545 x 535 x 3 mm

    Mono crystalline Flexible Solar Panel 50Watt Mono Cell Solar Panel


    Features of Solar Panel

    Polycrystalline or Monocrystalline silicon is a material consisting of thin wafers that are cut from a silicon crystal which has grown in several directions. This advanced texturing process provides polycrystalline or moncrystalline solar panels with a higher power output than amorphous panels of the same dimensions, and makes them more cost and space-effective. These individual wafers are assembled into panels that are covered by durable, weatherproof tempered glass. Thanks to their efficiency and durability, these solar panels require virtually no maintenance once installed.


    Solar panel is super energy saving and makes people life happy

    Solar panel helps us to take full advantage of solar energy which is clean, inexhautible and pollution-free, and it converts sunlight into electric. In this way, we can help people in remote areas without mains supply and lack of electricity, and light up nights and bring people hope there.


    Mono flexible solar panel feature:

    1. High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output

    2. The thickness only 2.5mm, easy joint to your yacht, boat or RV roof, or fixed on your caravans, motorhomes, bicycle and other vehicles for outdoor using

    3. Bending angle up to 30 degrees. Durable with aluminum backsheet, no glass


    Product Description

    BrandOEM/SHINE
    ModelnumberSN-MH50W
    characteristics
    Size545*535*4mm
    Cell dimension125*125mm
    No. Of cells16(4-4) pieces
    Electrical Performance
    Maximum power voltage15.36 V
    Maximum power current3.26 A
    Open circuit voltage28.80 V
    Short circuit current3.58 A
    Peak power50W
    Power tolerance0~+3%
    Maximum system Voltage (V)600 V
    Working Conditions & Parameters
    NOCT cell46±2 °C
    Temperature coefficient Isc (%)+0.04±0.015%/ °C
    Temperature coefficient Voc (%)-0.3±0.02%/ °C
    Temperature coefficient Pm (%)-0.45±0.05%/ °C
    Temperature coefficient Im (%)+0.04%/ °C
    Temperature coefficient Vm (%)-0.32±0.02%/ °C
    Operating temperatures-40°C ~+90 °C
    Surface pressure60m/s (200kg /m2)

    Pictures:

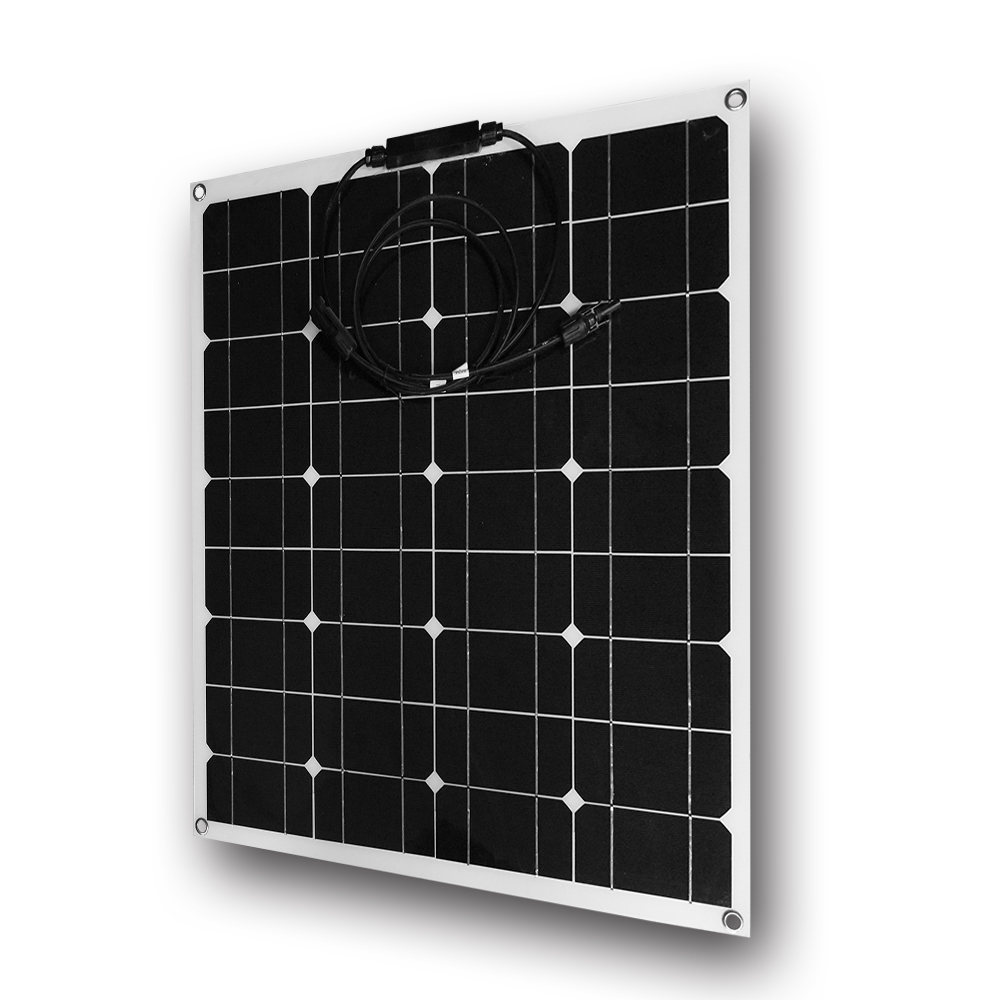

    Quality Corrosion Resistant Monocrystalline Solar Panel Kit 50 Watt 545 x 535 x 3 mm for sale
