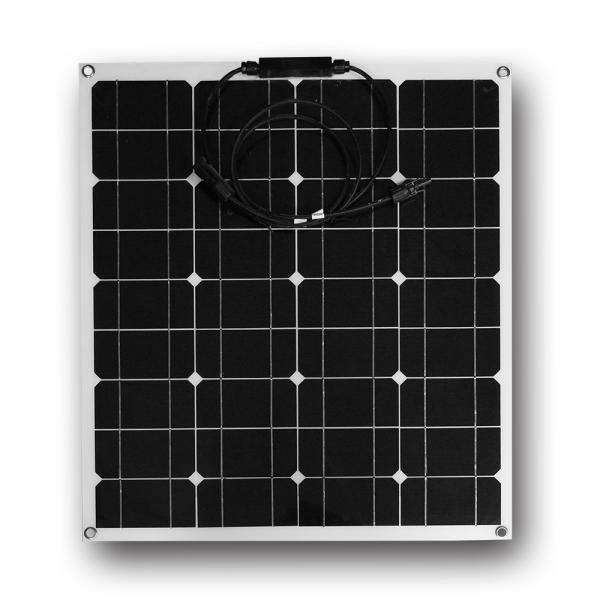

Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport

    Buy cheap Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport from wholesalers

    Buy cheap Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport from wholesalers
    • Buy cheap Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport from wholesalers
    • Buy cheap Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport from wholesalers

    Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport

    Ask Lasest Price
    Brand Name : SHINE or OEM
    Model Number : SN-MH50W
    Certification : CE,RoHS, TUV, IEC, SGS, ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15000 pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Weather Proof Semi Flexible Solar Panel 50W 18V Safety For Outdoor Sport

    Semi Flexible Solar Panel Mono Cell Solar Panel 50w 18v portable solar panel


    Polycrystalline or Monocrystalline silicon is a material consisting of thin wafers that are cut from a silicon crystal which has grown in several directions. This advanced texturing process provides polycrystalline or moncrystalline solar panels with a higher power output than amorphous panels of the same dimensions, and makes them more cost and space-effective. These individual wafers are assembled into panels that are covered by durable, weatherproof tempered glass. Thanks to their efficiency and durability, these solar panels require virtually no maintenance once installed.


    Specification:

    Model TypeSN-MH50W
    Peak Power(Pmax)50W
    Maximum Power Voltage(Vmp)17.6V
    Maximum Power Current(Imp)3.4A
    Open Circuit Voltage(Voc)21.24V
    Short Circuit Current(Isc)3.8A
    Cells Efficiency()23%
    Module Efficiency()21.5%
    Maximum System Voltage(V)1000V
    Maximum Series Fuse Rating(A)15A
    Power Tolerance0~+3
    Pmax Temperature Coefficients(W/)-0.450
    Voc Temperature Coefficients(V/)-0.350
    Isc Temperature Coefficients(A/)+0.040
    NOCT Nominal Operating Cell Temperature()47±2
    Operating and Storage Temperature()-40~+85
    Standard Test Condition(STC)1.000W/m2;AM 1.5;25+/-2
